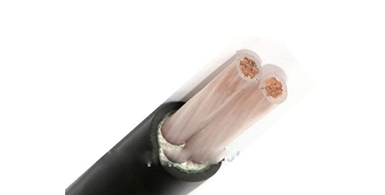

2 Cores Power Cable (XLPE Insulated)

XLPE insulated 2 cores power cables are normally used in power transmission and distribution systems.
The 2 core XLPE cable is referred to as IEC60502 CU/XLPE/PVC 0.6/1KV.
The circular conductor is applied for the size below 16 mm², and the shaped conductor is applied for the size above and including 35 mm².

Feature

Rated Temperature: 90 °C

Rated Voltage: 600/1000 V

Reference Standard: IEC 60502

Conductor: shaped or circular stranded copper conductor

Insulation: cross-linked polyethylene (XLPE) compound

PVC bedding

Flame-retardant PVC outer sheath

Parameter

Feature
Parameter

Recommendation
