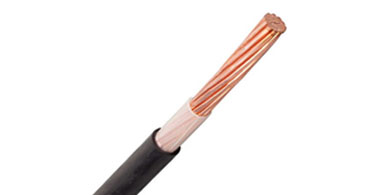

Single Core Power Cable (XLPE Insulated)

Single core XLPE insulated cable/wire features a plain annealed solid or strands circular copper conductor with XLPE insulation and PVC sheath. It is also referred to XLPE cable or CU/XLPE/PVC 0.6/1000V.
Available sizes include: 1.5 mm², 2.5 mm², 4 mm², 6 mm², 10 mm², 16 mm², 25 mm², 35 mm², 50 mm², 70 mm², 95 mm² and more.

Feature

Rated Temperature: 90°C

Rated Voltage: 600/1000V

Reference Standard: IEC 60502

Conductor: Shaped or circular stranded copper conductor

Insulation: Cross-linked polyethylene (XLPE) insulation

PVC bedding

Flame-retardant PVC outer sheath

Parameter

Feature
Parameter

Recommendation

2 Cores Power Cable (XLPE Insulated)

XLPE insulated 2 cores power cables are normally used in power transmission and distribution systems.
The 2 core XLPE cable is referred to as IEC60502 CU/XLPE/PVC 0.6/1KV.
The circular conductor is applied for the size below 16 mm², and the shaped conductor is applied for the size above and including 35 mm².
