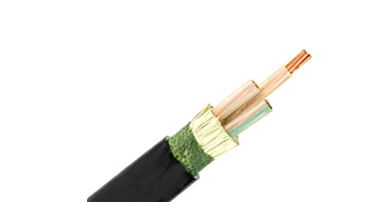

3 Cores Power Cable (XLPE Insulated)

XLPE insulated 3 cores power cable is normally used in power transmission and distribution systems. The three-core cable is referred to as: IEC60502 CU / XLPE / PVC 0.6/1kV
For conductor structure: Circular conductor is used for sizes below 16 mm²；Shaped conductor is used for sizes ≥ 35 mm²
The cable can also be manufactured according to BS 7889 standards.

Feature

Rated Temperature: 90 °C

Rated Voltage: 600/1000 V

Reference Standard: IEC 60502

Conductor: shaped or circular stranded copper conductor

Insulation: cross-linked polyethylene (XLPE)

PVC bedding

Flame-retardant PVC outer sheath

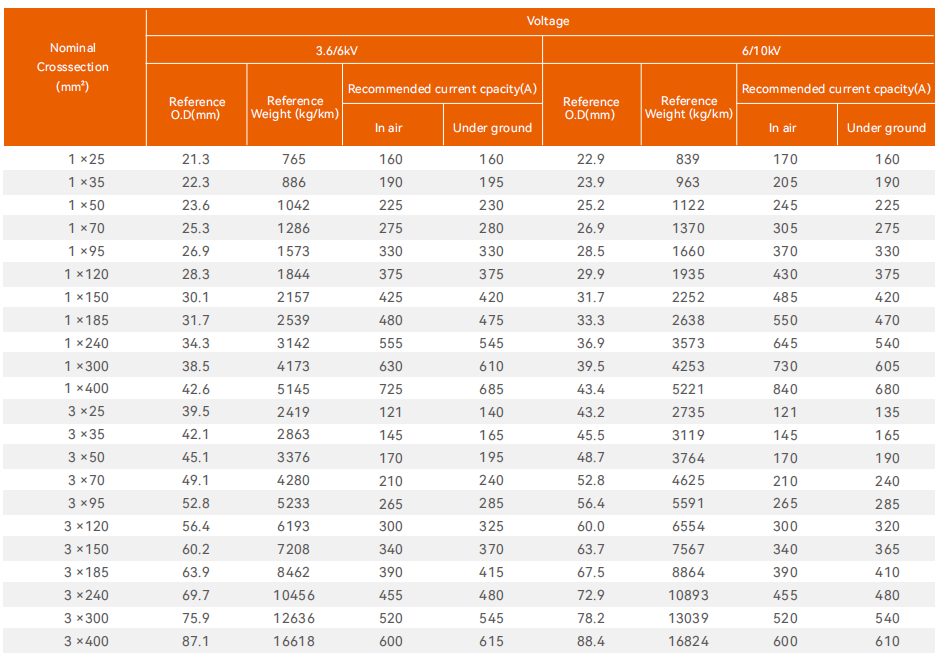

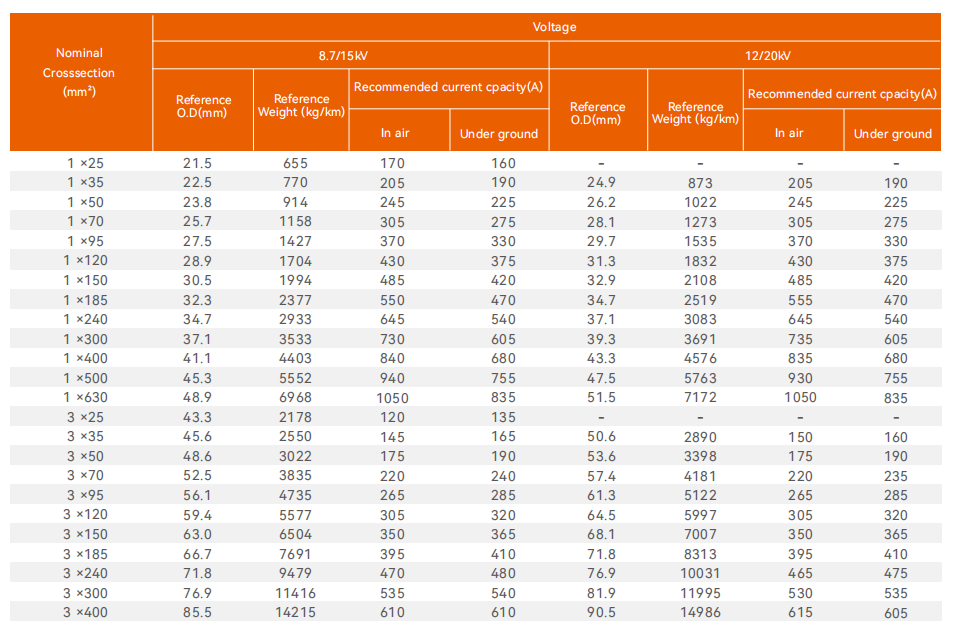

Parameter

Feature
Parameter
