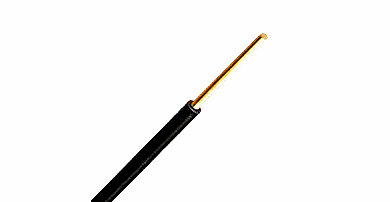

CU/PVC H05V-U

Feature

Conductor: annealed solid copper conductor (class 1)

Rated voltage: 300 / 500 V

Insulation: PVC

Bending radius: 15 × overall diameter

Short-circuit temperature: +160 °C

Flame retardant: IEC 60332-1

Insulation resistance: 10 MΩ × km

Applications

Internal wiring of equipment

Protective installation for lighting systems

Installation in tubes or conduits

Indoor installation under plaster or surface mounting in dry environments

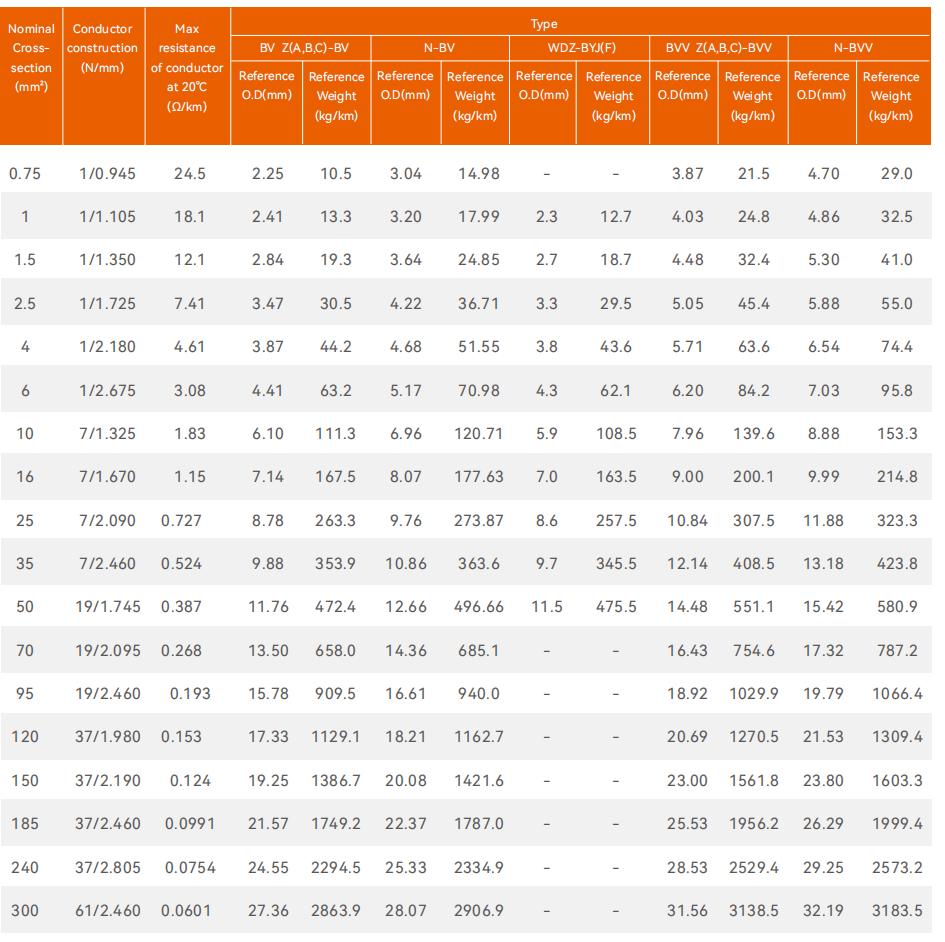

Parameter

Feature
Parameter

Recommendation
