Copper Core Rolled Copper Sheathed Inorganic Mineral Insulated Cable
Compared with traditional mineral insulated cables, this cables offer improved flexibility and easier installation while maintaining excellent performance under extreme conditions. They are widely used in applications where circuit integrity must be maintained during fire incidents.
Feature

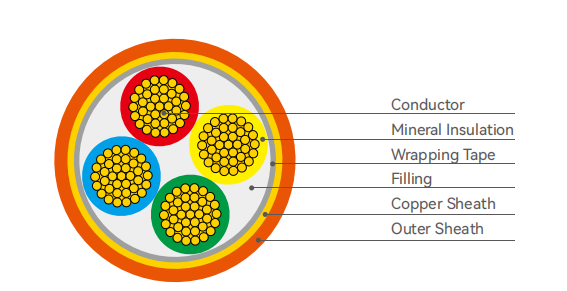

01Conductor: Superior fire-resistant core (maintains circuit integrity)
Insulation: Inorganic mineral materials (non-combustible and thermal stability)
Sheath Structure: Seamless rolled/welded copper sheath (moisture-resistant)
Mechanical Strength: High resistance to impact, compression, and stress
Temperature Performance: Continuous operation under extremely high heat
Flexibility: Enhanced bending radius (reduced installation difficulty)
Corrosion Resistance: Durable copper sheath for harsh industrial environments
Safety Standard: Low smoke and zero toxic emission (LSZH)
Applications
Fire protection systems (pumps, alarms, emergency lighting)
high-rise buildings and commercial complexes
Subways, tunnels, and rail transit systems
Hospitals, airports, and public infrastructure
Petrochemical and industrial plants
Emergency power supply and evacuation systems

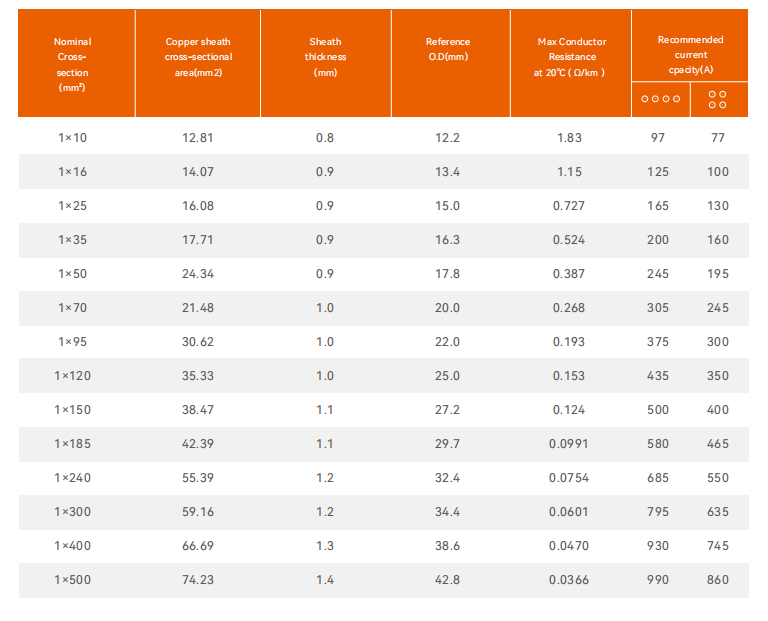

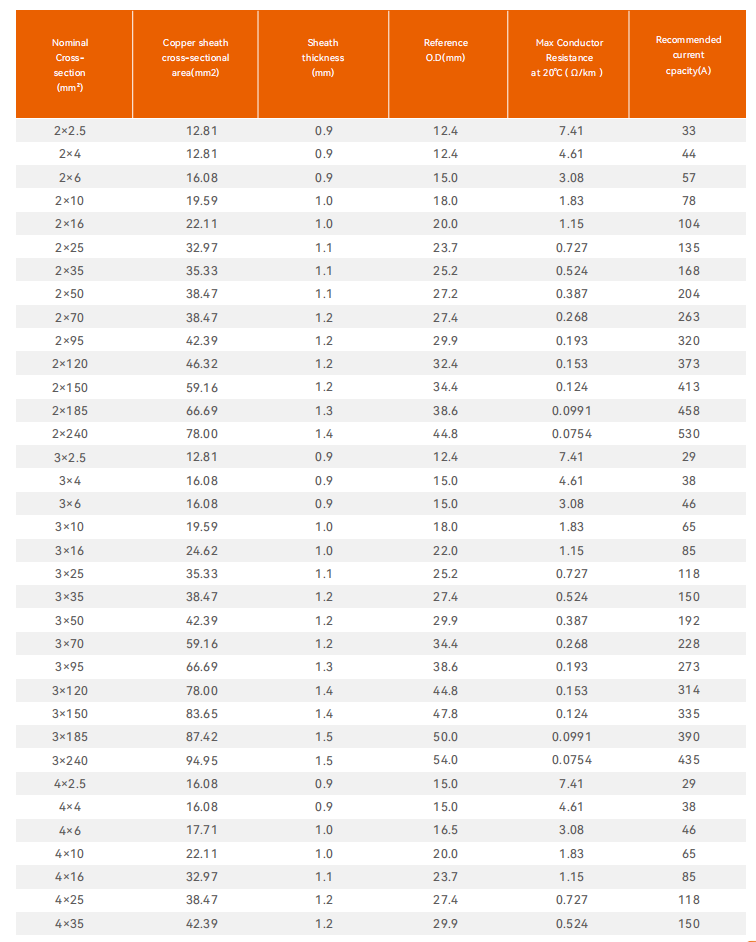

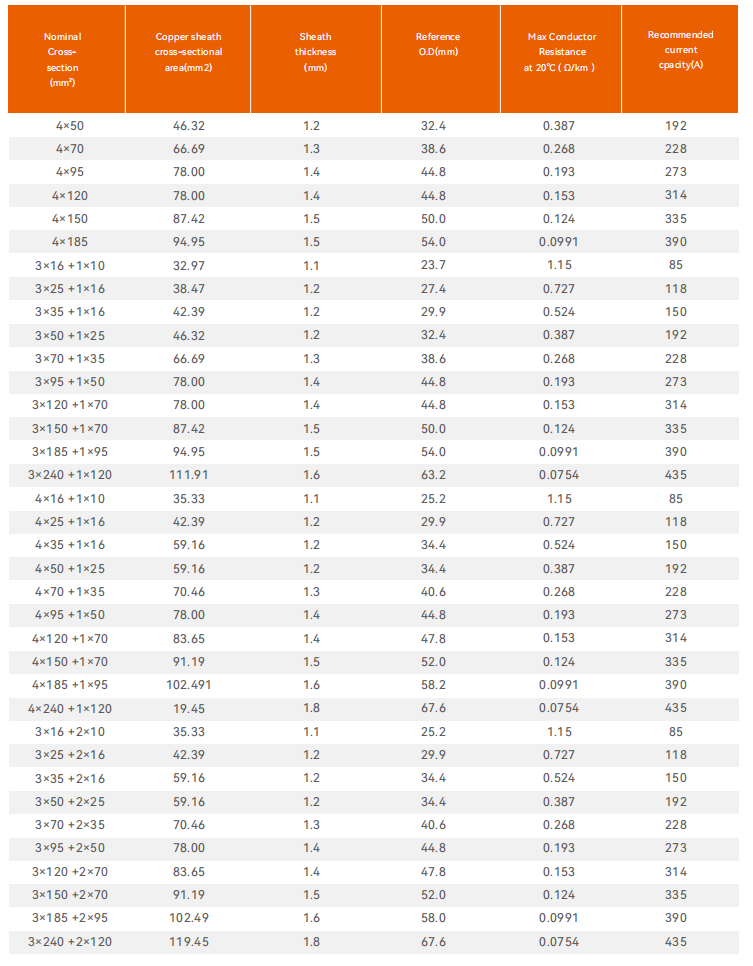

Parameter
02
-
Feature
-
Parameter
